Rotate coordinates in 2D

4. Rotate coordinates in 2D#

Let’s say we have some 2D coordinates from a dataset, like easting and northing in some projection, and we wish to rotate them. This could be useful, for example, if we’re using those coordinates to build a synthetic dataset. Or maybe we need to align the coordinates with a certain axis in order to do some processing. Whatever the use case, bordado.rotate_coordinates will do the operation for us.

import ensaio
import pyproj
import numpy as np
import matplotlib.pyplot as plt
import pandas as pd
import bordado as bd

To demonstrate, we’ll first load some bathymetry data from the Caribbean using ensaio.fetch_caribbean_bathymetry:

fname = ensaio.fetch_caribbean_bathymetry(version=2)
data = pd.read_csv(fname)
data
survey_id latitude longitude bathymetry_m
0 86005311 16.09652 -61.52117 -187
1 86005311 16.09415 -61.52104 -177
2 86005311 16.09177 -61.52091 -185
3 86005311 16.08940 -61.52078 -188
4 86005311 16.08703 -61.52066 -192
... ... ... ... ...
294316 JR336 15.28529 -57.01258 -5276
294317 JR336 15.28705 -57.00994 -5277
294318 JR336 15.28883 -57.00732 -5278
294319 JR336 15.29057 -57.00467 -5277
294320 JR336 15.29234 -57.00203 -5276

294321 rows × 4 columns

The data are all in geographic longitude and latitude coordinates. We’ll first project them to Cartesian coordinates using pyproj since rotating curvilinear geographic coordinates doesn’t make much sense:

projection = pyproj.Proj(proj="merc", lat_ts=data.latitude.mean())
coordinates = projection(data.longitude, data.latitude)

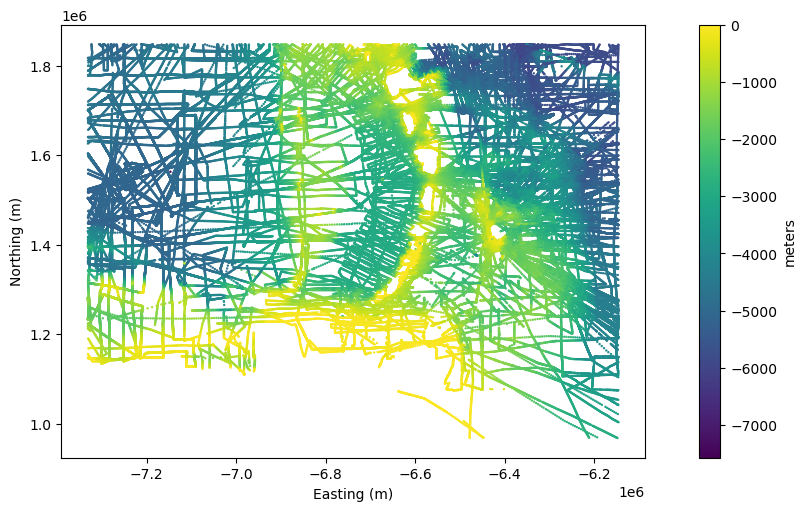

Now we can plot the data using matplotlib:

plt.figure(figsize=(8, 5), layout="constrained")
plt.scatter(*coordinates, c=data.bathymetry_m, s=0.5)
plt.colorbar(label="meters")
plt.xlabel("Easting (m)")
plt.ylabel("Northing (m)")
plt.axis("scaled")
plt.show()
../_images/rotate_3_0.png

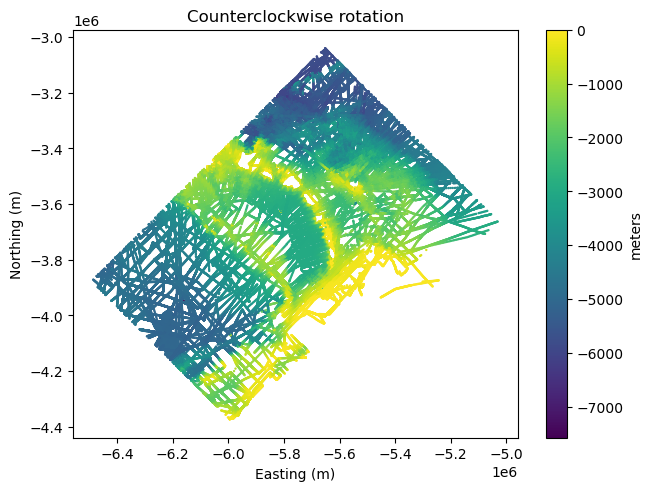

We can rotate the coordinates counterclockwise by providing a positive angle to rotate_coordinates:

rotated = bd.rotate_coordinates(coordinates, angle=45)

plt.figure(layout="constrained")
plt.scatter(*rotated, c=data.bathymetry_m, s=0.5)
plt.colorbar(label="meters")
plt.xlabel("Easting (m)")
plt.ylabel("Northing (m)")
plt.title("Counterclockwise rotation")
plt.axis("scaled")
plt.show()
../_images/rotate_4_0.png

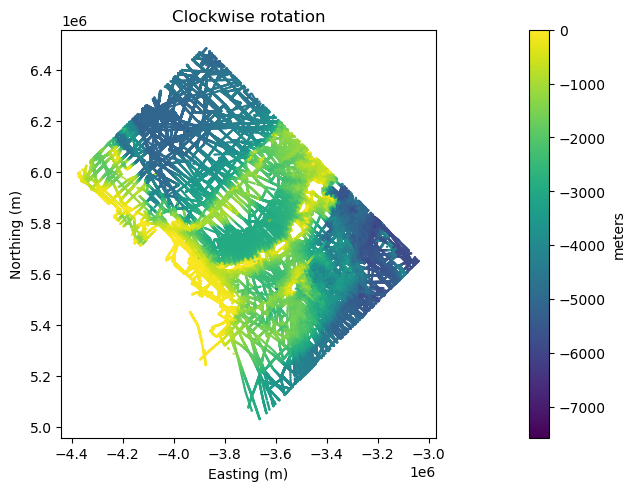

Or clockwise by providing a negative angle:

rotated = bd.rotate_coordinates(coordinates, angle=-45)

plt.figure(layout="constrained")
plt.scatter(*rotated, c=data.bathymetry_m, s=0.5)
plt.colorbar(label="meters")
plt.xlabel("Easting (m)")
plt.ylabel("Northing (m)")
plt.title("Clockwise rotation")
plt.axis("scaled")
plt.show()
../_images/rotate_5_0.png

Notice that the range of the coordinates changes quite a bit. This is because the rotation is done around the origin of the coordinate system at point (0, 0).

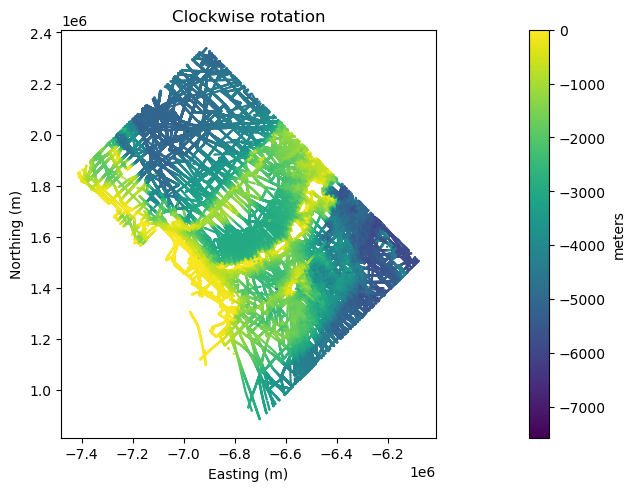

To rotate around the center of the dataset and retain approximately the original range of the coordinates, we can specify the rotation_center argument:

rotated = bd.rotate_coordinates(
    coordinates,
    angle=-45,
    rotation_center=[np.median(c) for c in coordinates],
)

plt.figure(layout="constrained")
plt.scatter(*rotated, c=data.bathymetry_m, s=0.5)
plt.colorbar(label="meters")
plt.xlabel("Easting (m)")
plt.ylabel("Northing (m)")
plt.title("Clockwise rotation")
plt.axis("scaled")
plt.show()
../_images/rotate_6_0.png

In this case, the layout of the points looks exactly the same as previously, but the range of the coordinates matches the original dataset more closely.
