7. Calculate a rolling average of scattered point data#

Rolling averages are great for smoothing and downsampling data. It’s relatively easy to perform them on regularly spaced data but not so for scattered points. Let’s see how we can use bordado.rolling_window to calculate a rolling average of some scattered topography data.

import ensaio
import pyproj
import pygmt
import numpy as np
import pandas as pd
import xarray as xr
import bordado as bd

For this example, we’ll use ensaio.ensaio.fetch_sierra_negra_topography to get some topography data from the Sierra Negra volcano in the Galapagos:

fname = ensaio.fetch_sierra_negra_topography(version=1)
data = pd.read_csv(fname)
data

	longitude	latitude	elevation_m
0	-91.115651	-0.783062	930.1
1	-91.115658	-0.783056	930.7
2	-91.115649	-0.783060	930.3
3	-91.115656	-0.783063	929.7
4	-91.115655	-0.783068	929.2
...	...	...	...
1731379	-91.118421	-0.781943	990.7
1731380	-91.118303	-0.781933	990.2
1731381	-91.118357	-0.781971	992.4
1731382	-91.118354	-0.781940	991.2
1731383	-91.118374	-0.781945	991.4

1731384 rows × 3 columns

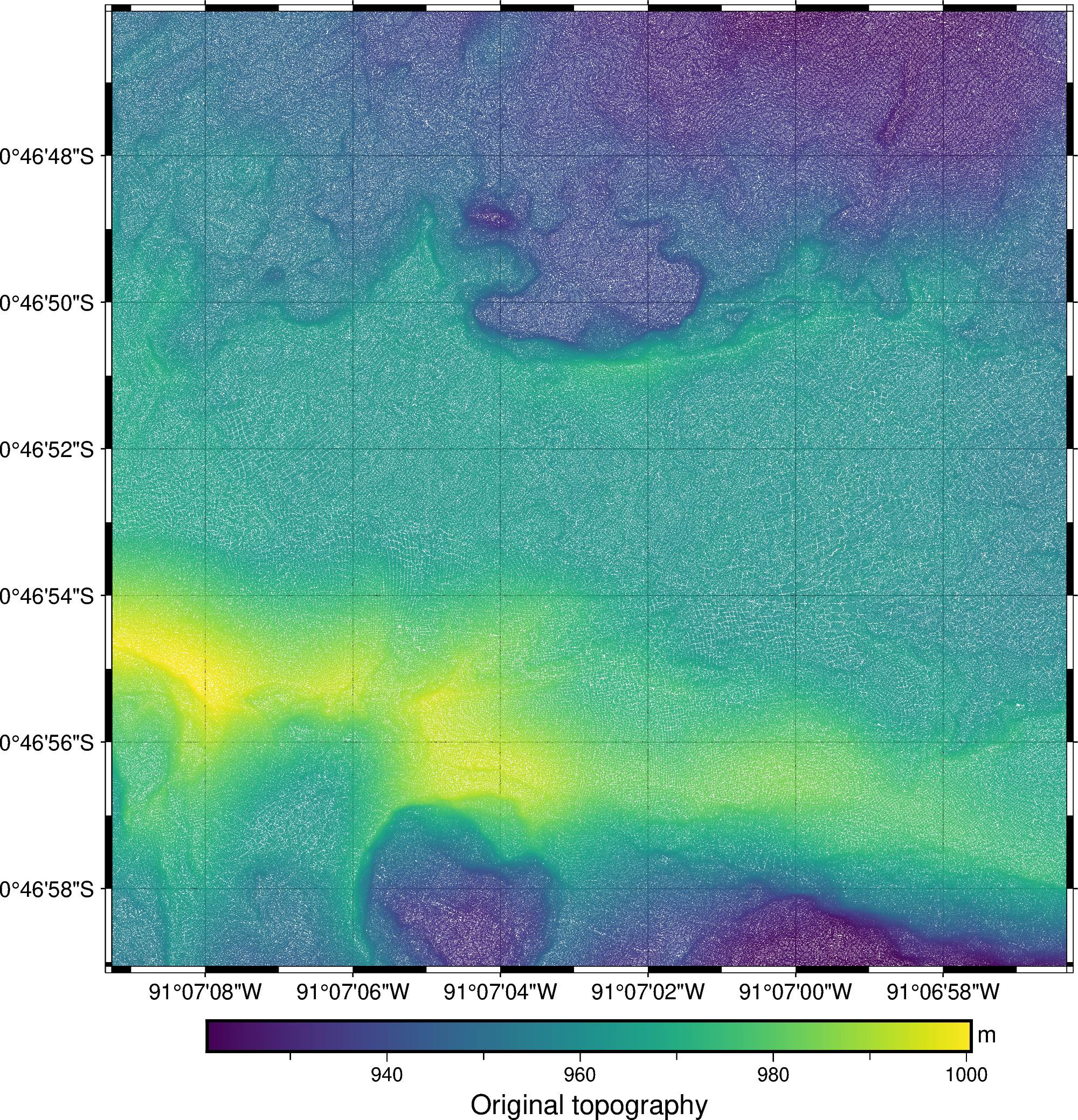

Let’s plot the data with pygmt to see what we’ve got:

region = bd.get_region((data.longitude, data.latitude))
fig = pygmt.Figure()
pygmt.makecpt(
    cmap="viridis",
    series=[data.elevation_m.min(), data.elevation_m.max()],
)
fig.plot(
    x=data.longitude,
    y=data.latitude,
    fill=data.elevation_m,
    cmap=True,
    style="c0.01c",
    projection="M15c",
    region=region,
    frame="afg",
)
fig.colorbar(frame=["af+lOriginal topography", "y+lm"])
fig.show()

The data are very high resolution and dense. If we want to smooth it and downsample it, a rolling average is just what we need.

Let’s first project the data so we can work with Cartesian distances instead of angles:

projection = pyproj.Proj(proj="merc", lat_ts=data.latitude.mean())
easting, northing = projection(data.longitude, data.latitude)

Now we can call rolling_windows to split the data into 5 meter windows with a 75% overlap:

coordinates_proj, indices = bd.rolling_window(
    (easting, northing), window_size=5, overlap=0.75,
)
# Get back longitude and latitude for the center of each window
coordinates = projection(*coordinates_proj, inverse=True)

With this, we have the coordinates of the center of each window and the indices of the data points that fall inside each window. To calculate the rolling average, we iterate over the indices and use them to index the data:

average_values = np.empty_like(coordinates[0])
for i in range(indices.shape[0]):
    for j in range(indices.shape[1]):
        average_values[i, j] = np.mean(data.elevation_m.iloc[indices[i, j]])
average_values

array([[953.41106383, 953.37628458, 953.33129771, ..., 932.0168357 ,
        932.05904366, 932.14956897],
       [953.77283951, 953.76188679, 953.74763636, ..., 933.89738806,
        933.96431298, 934.04811133],
       [954.1721519 , 954.16521739, 954.18555133, ..., 935.90951456,
        935.87777778, 935.88033473],
       ...,
       [950.03261803, 950.10575221, 950.10990991, ..., 933.85158371,
        934.01933962, 934.16287129],
       [949.79118943, 949.80904977, 949.80133929, ..., 933.87385321,
        934.04953271, 934.2285    ],
       [949.5518018 , 949.54813084, 949.51342593, ..., 933.88073394,
        934.08537736, 934.26192893]], shape=(317, 317))

If we choose to assign the data values to the coordinates of the center of the windows, we now have a regular grid. We can wrap the coordinates and the rolling average in a xarray.DataArray:

average = xr.DataArray(
    average_values,
    coords={"longitude": coordinates[0][0, :], "latitude": coordinates[1][:, 0]},
    dims=("latitude", "longitude")
)
average

<xarray.DataArray (latitude: 317, longitude: 317)> Size: 804kB
array([[953.41106383, 953.37628458, 953.33129771, ..., 932.0168357 ,
        932.05904366, 932.14956897],
       [953.77283951, 953.76188679, 953.74763636, ..., 933.89738806,
        933.96431298, 934.04811133],
       [954.1721519 , 954.16521739, 954.18555133, ..., 935.90951456,
        935.87777778, 935.88033473],
       ...,
       [950.03261803, 950.10575221, 950.10990991, ..., 933.85158371,
        934.01933962, 934.16287129],
       [949.79118943, 949.80904977, 949.80133929, ..., 933.87385321,
        934.04953271, 934.2285    ],
       [949.5518018 , 949.54813084, 949.51342593, ..., 933.88073394,
        934.08537736, 934.26192893]], shape=(317, 317))
Coordinates:
  * latitude   (latitude) float64 3kB -0.783 -0.783 -0.783 ... -0.7795 -0.7795
  * longitude  (longitude) float64 3kB -91.12 -91.12 -91.12 ... -91.12 -91.12

Note

While it’s useful to have a xarray.DataArray, this step is entirely optional.

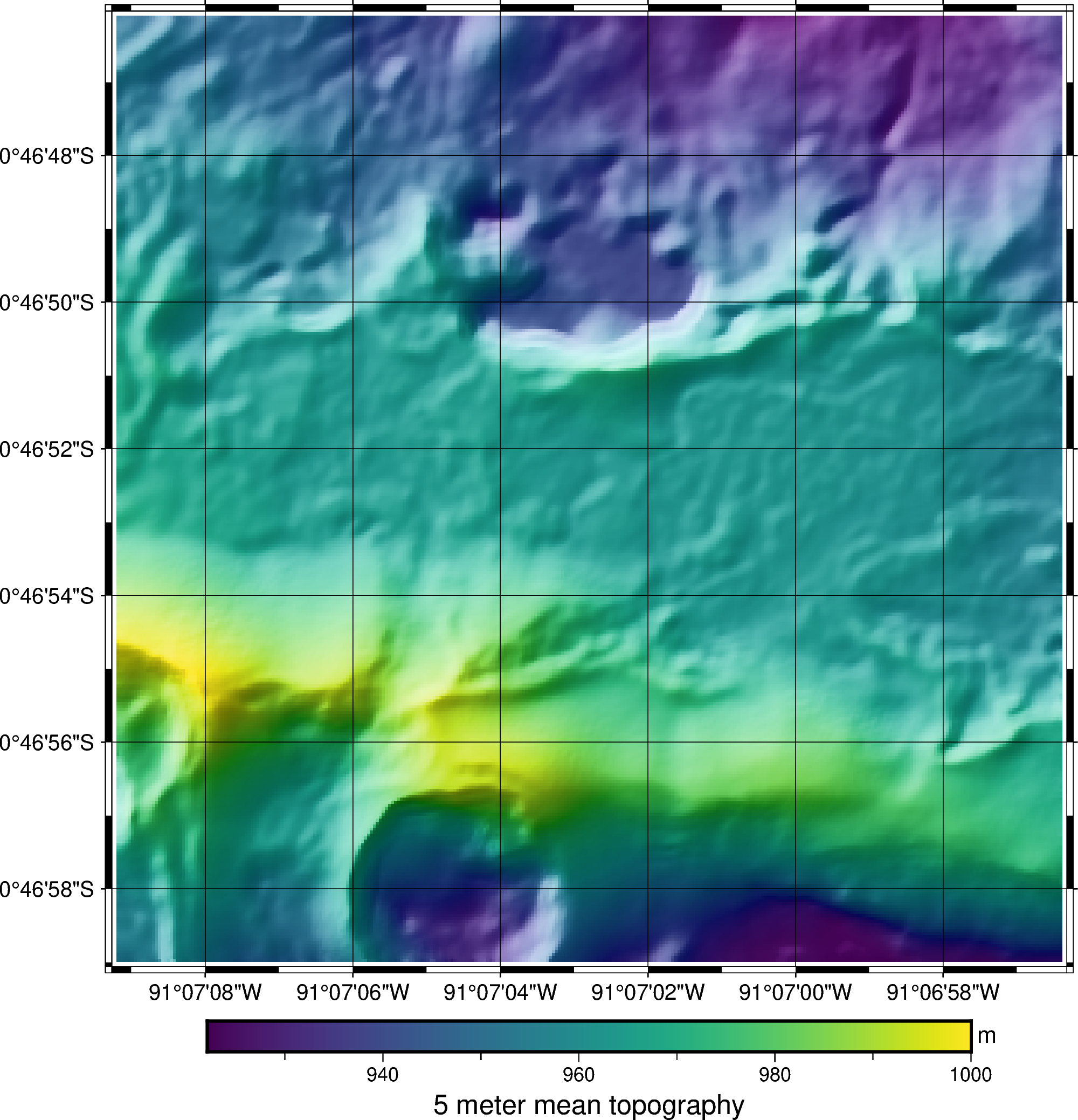

The DataArray can be passed to pygmt.Figure.grdimage to make a pseudo-color plot of the smoothed topography with some hill shading:

fig = pygmt.Figure()
fig.grdimage(
    average,
    cmap="viridis",
    projection="M15c",
    region=region,
    shading=True,
    frame="afg",
)
fig.colorbar(frame=["af+l5 meter mean topography", "y+lm"])
fig.show()

The features in the 5-meter average grid above are smoothed when compared to the original point data.
