Vector Data¶
Some datasets have multiple vector components measured for each location, like the East and West components of wind speed or GPS velocities. For example, let’s look at our sample GPS velocity data from the U.S. West coast.
import matplotlib.pyplot as plt
import cartopy.crs as ccrs
import pyproj
import verde as vd
data = vd.datasets.fetch_california_gps()
# We'll need to project the geographic coordinates to work with our Cartesian
# classes/functions
projection = pyproj.Proj(proj="merc", lat_ts=data.latitude.mean())
proj_coords = projection(data.longitude.values, data.latitude.values)
# This will be our desired grid spacing in degrees
spacing = 12 / 60
plt.figure(figsize=(6, 8))
ax = plt.axes(projection=ccrs.Mercator())
crs = ccrs.PlateCarree()
tmp = ax.quiver(
data.longitude.values,
data.latitude.values,
data.velocity_east.values,
data.velocity_north.values,
scale=0.3,
transform=crs,
width=0.002,
)
ax.quiverkey(tmp, 0.2, 0.15, 0.05, label="0.05 m/yr", coordinates="figure")
ax.set_title("GPS horizontal velocities")
vd.datasets.setup_california_gps_map(ax)
plt.tight_layout()
plt.show()
Out:
/home/travis/build/fatiando/verde/tutorials/vectors.py:38: UserWarning: Tight layout not applied. The left and right margins cannot be made large enough to accommodate all axes decorations.
plt.tight_layout()
Verde classes and functions are equipped to deal with vector data natively or through
the use of the verde.Vector
class. Function and classes that can take vector
data as input will accept tuples as the data
and weights
arguments. Each
element of the tuple must be an array with the data values for a component of the
vector data. As with coordinates
, the order of components must be
(east_component, north_component, up_component)
.
Blocked reductions¶
Operations with verde.BlockReduce
and verde.BlockMean
can handle
multi-component data automatically. The reduction operation is applied to each data
component separately. The blocked data and weights will be returned in tuples as well
following the same ordering as the inputs. This will work for an arbitrary number of
components.
# Use a blocked mean with uncertainty type weights
reducer = vd.BlockMean(spacing=spacing * 111e3, uncertainty=True)
block_coords, block_data, block_weights = reducer.filter(
coordinates=proj_coords,
data=(data.velocity_east, data.velocity_north),
weights=(1 / data.std_east ** 2, 1 / data.std_north ** 2),
)
print(len(block_data), len(block_weights))
Out:
2 2
We can convert the blocked coordinates back to longitude and latitude to plot with Cartopy.
block_lon, block_lat = projection(*block_coords, inverse=True)
plt.figure(figsize=(6, 8))
ax = plt.axes(projection=ccrs.Mercator())
crs = ccrs.PlateCarree()
tmp = ax.quiver(
block_lon,
block_lat,
block_data[0],
block_data[1],
scale=0.3,
transform=crs,
width=0.002,
)
ax.quiverkey(tmp, 0.2, 0.15, 0.05, label="0.05 m/yr", coordinates="figure")

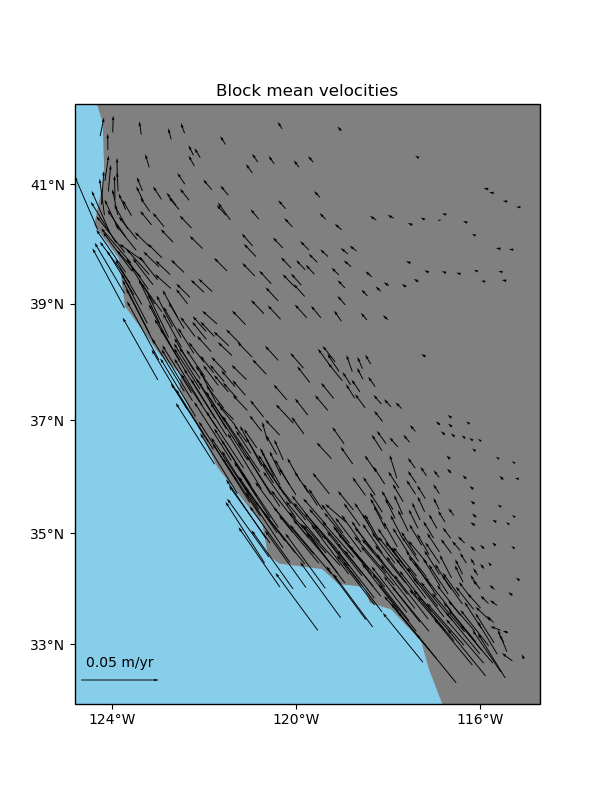

ax.set_title("Block mean velocities")
vd.datasets.setup_california_gps_map(ax)
plt.tight_layout()
plt.show()
Out:
/home/travis/build/fatiando/verde/tutorials/vectors.py:90: UserWarning: Tight layout not applied. The left and right margins cannot be made large enough to accommodate all axes decorations.
plt.tight_layout()
Trends¶
Trends can’t handle vector data automatically, so you can’t pass
data=(data.velocity_east, data.velocity_north)
to verde.Trend.fit
. To get
around that, you can use the verde.Vector
class to create multi-component
estimators and gridders from single component ones.
Vector
takes an estimator/gridder for each data component and
implements the gridder interface for vector data, fitting
each estimator/gridder given to a different component of the data.
For example, to fit a trend to our GPS velocities, we need to make a 2-component vector trend:
Out:
Vector(components=[Trend(degree=4), Trend(degree=1)])
We can use the trend
as if it were a regular verde.Trend
but passing in
2-component data to fit. This will fit each data component to a different
verde.Trend
.
trend.fit(
coordinates=proj_coords,
data=(data.velocity_east, data.velocity_north),
weights=(1 / data.std_east ** 2, 1 / data.std_north ** 2),
)
Each estimator can be accessed through the components
attribute:
print(trend.components)
print("East trend coefficients:", trend.components[0].coef_)
print("North trend coefficients:", trend.components[1].coef_)
Out:
[Trend(degree=4), Trend(degree=1)]
East trend coefficients: [-3.31743842e+03 -1.61368023e-03 -1.08568612e-03 -2.77735425e-10
-2.99424188e-10 7.38718817e-12 -2.03916793e-17 -2.68710016e-17
3.36222190e-18 2.00921241e-18 -5.43959102e-25 -7.79030546e-25
2.71546631e-25 2.44086928e-25 5.03611061e-26]
North trend coefficients: [-3.35415183e-01 -4.50275691e-08 -3.75590521e-08]
When we call verde.Vector.predict
or verde.Vector.grid
, we’ll get back
predictions for two components instead of just one. Each prediction comes from a
different verde.Trend
.
pred_east, pred_north = trend.predict(proj_coords)
# Make histograms of the residuals
plt.figure(figsize=(6, 5))
ax = plt.axes()
ax.set_title("Trend residuals")
ax.hist(data.velocity_north - pred_north, bins="auto", label="North", alpha=0.7)
ax.hist(data.velocity_east - pred_east, bins="auto", label="East", alpha=0.7)
ax.legend()
ax.set_xlabel("Velocity (m/yr)")
plt.tight_layout()
plt.show()
As expected, the residuals are higher for the North component because of the lower degree polynomial.
Let’s make geographic grids of these trends.
region = vd.get_region((data.longitude, data.latitude))
grid = trend.grid(
region=region,
spacing=spacing,
projection=projection,
dims=["latitude", "longitude"],
)
print(grid)
Out:
<xarray.Dataset>
Dimensions: (latitude: 49, longitude: 47)
Coordinates:
* longitude (longitude) float64 235.7 235.9 236.1 ... 244.6 244.8 245.0
* latitude (latitude) float64 32.29 32.49 32.69 ... 41.5 41.7 41.9
Data variables:
east_component (latitude, longitude) float64 -0.1983 -0.1853 ... 0.01365
north_component (latitude, longitude) float64 0.0541 0.05328 ... -0.02427
Attributes:
metadata: Generated by Vector(components=[Trend(degree=4), Trend(degree=...
By default, the names of the data components in the xarray.Dataset
are
east_component
and north_component
. This can be customized using the
data_names
argument.
Now we can map the trends.
fig, axes = plt.subplots(
1, 2, figsize=(9, 7), subplot_kw=dict(projection=ccrs.Mercator())
)
crs = ccrs.PlateCarree()
titles = ["East component trend", "North component trend"]
components = [grid.east_component, grid.north_component]
for ax, component, title in zip(axes, components, titles):
ax.set_title(title)
maxabs = vd.maxabs(component)
tmp = component.plot.pcolormesh(
ax=ax,
vmin=-maxabs,
vmax=maxabs,
cmap="bwr",
transform=crs,
add_colorbar=False,
add_labels=False,
)
cb = plt.colorbar(tmp, ax=ax, orientation="horizontal", pad=0.05)
cb.set_label("meters/year")
vd.datasets.setup_california_gps_map(ax, land=None, ocean=None)
ax.coastlines(color="white")
plt.tight_layout()
plt.show()
Out:
/home/travis/build/fatiando/verde/tutorials/vectors.py:193: UserWarning: Tight layout not applied. The left and right margins cannot be made large enough to accommodate all axes decorations.
plt.tight_layout()
Gridding¶
You can use verde.Vector
to create multi-component gridders out of
verde.Spline
the same way as we did for trends. In this case, each component
is treated separately.
We can start by splitting the data into training and testing sets (see
Model Selection). Notice that verde.train_test_split
work for
multicomponent data automatically.
train, test = vd.train_test_split(
coordinates=proj_coords,
data=(data.velocity_east, data.velocity_north),
weights=(1 / data.std_east ** 2, 1 / data.std_north ** 2),
random_state=1,
)
Now we can make a 2-component spline. Since verde.Vector
implements
fit
, predict
, and filter
, we can use it in a verde.Chain
to build
a pipeline.
We need to use a bit of damping so that the weights can be taken into account. Splines without damping provide a perfect fit to the data and ignore the weights as a consequence.
Out:
Chain(steps=[('mean',
BlockMean(adjust='spacing', center_coordinates=False, region=None,
shape=None, spacing=22200.0, uncertainty=True)),
('trend', Vector(components=[Trend(degree=1), Trend(degree=1)])),
('spline',
Vector(components=[Spline(damping=1e-10, engine='auto',
force_coords=None, mindist=1e-05),
Spline(damping=1e-10, engine='auto',
force_coords=None, mindist=1e-05)]))])
Warning
Never generate the component gridders with [vd.Spline()]*2
. This will result
in each component being a represented by the same Spline object, causing
problems when trying to fit it to different components.
Fitting the spline and gridding is exactly the same as what we’ve done before.
chain.fit(*train)
# Score on the test data
print(chain.score(*test))
grid = chain.grid(
region=region,
spacing=spacing,
projection=projection,
dims=["latitude", "longitude"],
)
print(grid)
Out:
0.9926756537957526
<xarray.Dataset>
Dimensions: (latitude: 49, longitude: 47)
Coordinates:
* longitude (longitude) float64 235.7 235.9 236.1 ... 244.6 244.8 245.0
* latitude (latitude) float64 32.29 32.49 32.69 ... 41.5 41.7 41.9
Data variables:
east_component (latitude, longitude) float64 -0.04659 ... -0.0006173
north_component (latitude, longitude) float64 0.08795 ... -0.0006024
Attributes:
metadata: Generated by Chain(steps=[('mean',\n BlockMean(ad...
Mask out the points too far from data and plot the gridded vectors.
grid = vd.distance_mask(
(data.longitude, data.latitude),
maxdist=spacing * 2 * 111e3,
grid=grid,
projection=projection,
)
plt.figure(figsize=(6, 8))
ax = plt.axes(projection=ccrs.Mercator())
tmp = ax.quiver(
grid.longitude.values,
grid.latitude.values,
grid.east_component.values,
grid.north_component.values,
scale=0.3,
transform=crs,
width=0.002,
)
ax.quiverkey(tmp, 0.2, 0.15, 0.05, label="0.05 m/yr", coordinates="figure")
ax.set_title("Gridded velocities")
vd.datasets.setup_california_gps_map(ax)
plt.tight_layout()
plt.show()
Out:
/home/travis/miniconda/envs/testing/lib/python3.6/site-packages/cartopy/mpl/geoaxes.py:1752: RuntimeWarning: invalid value encountered in less
u, v = self.projection.transform_vectors(t, x, y, u, v)
/home/travis/miniconda/envs/testing/lib/python3.6/site-packages/cartopy/mpl/geoaxes.py:1752: RuntimeWarning: invalid value encountered in greater
u, v = self.projection.transform_vectors(t, x, y, u, v)
/home/travis/build/fatiando/verde/tutorials/vectors.py:280: UserWarning: Tight layout not applied. The left and right margins cannot be made large enough to accommodate all axes decorations.
plt.tight_layout()
Another way of gridding 2-component vector data is using
verde.VectorSpline2D
. This gridder uses linear elasticity theory to couple
the two vector components. The degree of coupling can be controlled through the
poisson
parameter which sets the Poisson’s ratio of the elastic medium.
chain_coupled = vd.Chain(
[
("mean", vd.BlockMean(spacing=spacing * 111e3, uncertainty=True)),
("trend", vd.Vector([vd.Trend(1), vd.Trend(1)])),
("spline", vd.VectorSpline2D(poisson=0.5, damping=1e-10)),
]
)
chain_coupled.fit(*train)
print(chain_coupled.score(*test))
Out:
0.9906070698505955
VectorSpline2D
generally gives better results when gridding GPS
velocities, particularly for higher density grids and areas with sharp changes in
velocity [SandwellWessel2016]. Here, we won’t see a big difference because of the
low-density grid that we’re making.
grid_coupled = chain_coupled.grid(
region=region,
spacing=spacing,
projection=projection,
dims=["latitude", "longitude"],
)
grid_coupled = vd.distance_mask(
(data.longitude, data.latitude),
maxdist=spacing * 2 * 111e3,
grid=grid_coupled,
projection=projection,
)
fig, axes = plt.subplots(
1, 2, figsize=(9, 6.5), subplot_kw=dict(projection=ccrs.Mercator())
)
crs = ccrs.PlateCarree()
titles = ["Gridded velocity (uncoupled)", "Gridded velocity (coupled)"]
grids = [grid, grid_coupled]
for ax, grd, title in zip(axes, grids, titles):
ax.set_title(title)
tmp = ax.quiver(
grd.longitude.values,
grd.latitude.values,
grd.east_component.values,
grd.north_component.values,
scale=0.3,
transform=crs,
width=0.002,
)
vd.datasets.setup_california_gps_map(ax)
ax.quiverkey(tmp, 0.15, 0.15, 0.05, label="0.05 m/yr", coordinates="figure")
plt.tight_layout()
plt.show()
Out:
/home/travis/miniconda/envs/testing/lib/python3.6/site-packages/cartopy/mpl/geoaxes.py:1752: RuntimeWarning: invalid value encountered in less
u, v = self.projection.transform_vectors(t, x, y, u, v)
/home/travis/miniconda/envs/testing/lib/python3.6/site-packages/cartopy/mpl/geoaxes.py:1752: RuntimeWarning: invalid value encountered in greater
u, v = self.projection.transform_vectors(t, x, y, u, v)
/home/travis/build/fatiando/verde/tutorials/vectors.py:338: UserWarning: Tight layout not applied. The left and right margins cannot be made large enough to accommodate all axes decorations.
plt.tight_layout()
Total running time of the script: ( 0 minutes 3.810 seconds)
