Magnetic data from Rio de Janeiro

We provide sample total-field magnetic anomaly data from an airborne survey of Rio de Janeiro, Brazil, from the 1970s. The data are made available by the Geological Survey of Brazil (CPRM) through their GEOSGB portal. See the documentation for verde.datasets.fetch_rio_magnetic_anomaly for more details.

Out:

longitude   latitude  total_field_anomaly_nt  height_ell_m
0 -42.590424 -22.499878                  115.41        264.26
1 -42.590485 -22.498978                  121.35        265.48
2 -42.590530 -22.498077                  128.29        263.96
3 -42.590591 -22.497177                  133.24        258.47
4 -42.590652 -22.496277                  136.18        252.07

import matplotlib.pyplot as plt
import cartopy.crs as ccrs
import numpy as np
import verde as vd

# The data are in a pandas.DataFrame
data = vd.datasets.fetch_rio_magnetic()
print(data.head())

# Make a Mercator map of the data using Cartopy
crs = ccrs.PlateCarree()
plt.figure(figsize=(7, 5))
ax = plt.axes(projection=ccrs.Mercator())

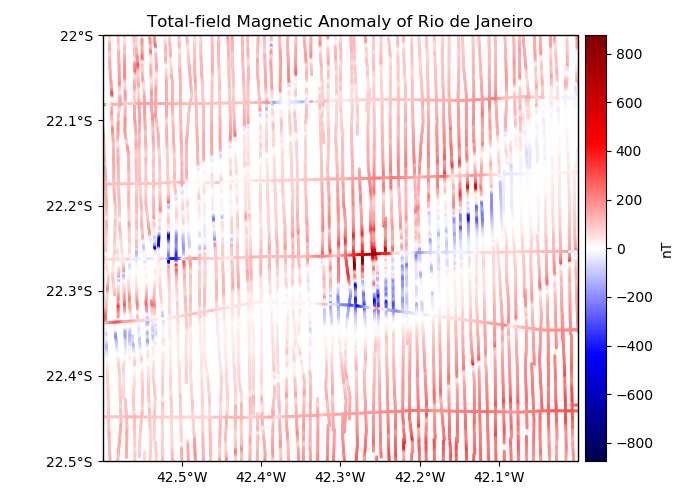

ax.set_title("Total-field Magnetic Anomaly of Rio de Janeiro")
# Since the data is diverging (going from negative to positive) we need to center our
# colorbar on 0. To do this, we calculate the maximum absolute value of the data to set
# vmin and vmax.
maxabs = vd.maxabs(data.total_field_anomaly_nt)
# Cartopy requires setting the projection of the original data through the transform
# argument. Use PlateCarree for geographic data.
plt.scatter(
    data.longitude,
    data.latitude,
    c=data.total_field_anomaly_nt,
    s=1,
    cmap="seismic",
    vmin=-maxabs,
    vmax=maxabs,
    transform=crs,
)
plt.colorbar(pad=0.01).set_label("nT")
# Set the proper ticks for a Cartopy map
vd.datasets.setup_rio_magnetic_map(ax)
plt.tight_layout()
plt.show()
