PREM: Preliminary Reference Earth Model¶
The Preliminary reference Earth model (PREM) [Dziewonsky1981] is a one-dimensional
model representing the average Earth properties as a function of planetary radius. The
model includes the depth, density, seismic velocities, attenuation (Q) and anisotropic
parameter (\(\eta\)) on the boundaries of several Earth layers. The data is loaded
into pandas.DataFrame objects, which can be used to plot and make computations.
Out:
radius depth density Vpv ... Vsh eta Q_mu Q_kappa
0 6371.0 0.0 1.02000 1.45000 ... 0.00000 1.00000 0.0 57823.0
1 6370.0 1.0 1.02000 1.45000 ... 0.00000 1.00000 0.0 57823.0
2 6369.0 2.0 1.02000 1.45000 ... 0.00000 1.00000 0.0 57823.0
3 6368.0 3.0 1.02000 1.45000 ... 0.00000 1.00000 0.0 57823.0
4 6368.0 3.0 2.60000 5.80000 ... 3.20000 1.00000 600.0 57823.0
5 6367.0 4.0 2.60000 5.80000 ... 3.20000 1.00000 600.0 57823.0
6 6366.0 5.0 2.60000 5.80000 ... 3.20000 1.00000 600.0 57823.0
7 6365.0 6.0 2.60000 5.80000 ... 3.20000 1.00000 600.0 57823.0
8 6364.0 7.0 2.60000 5.80000 ... 3.20000 1.00000 600.0 57823.0
9 6363.0 8.0 2.60000 5.80000 ... 3.20000 1.00000 600.0 57823.0
10 6362.0 9.0 2.60000 5.80000 ... 3.20000 1.00000 600.0 57823.0
11 6361.0 10.0 2.60000 5.80000 ... 3.20000 1.00000 600.0 57823.0
12 6360.0 11.0 2.60000 5.80000 ... 3.20000 1.00000 600.0 57823.0
13 6359.0 12.0 2.60000 5.80000 ... 3.20000 1.00000 600.0 57823.0
14 6358.0 13.0 2.60000 5.80000 ... 3.20000 1.00000 600.0 57823.0
15 6357.0 14.0 2.60000 5.80000 ... 3.20000 1.00000 600.0 57823.0
16 6356.0 15.0 2.60000 5.80000 ... 3.20000 1.00000 600.0 57823.0
17 6356.0 15.0 2.90000 6.80000 ... 3.90000 1.00000 600.0 57823.0
18 6355.0 16.0 2.90000 6.80000 ... 3.90000 1.00000 600.0 57823.0
19 6354.0 17.0 2.90000 6.80000 ... 3.90000 1.00000 600.0 57823.0
20 6353.0 18.0 2.90000 6.80000 ... 3.90000 1.00000 600.0 57823.0
21 6352.0 19.0 2.90000 6.80000 ... 3.90000 1.00000 600.0 57823.0
22 6351.0 20.0 2.90000 6.80000 ... 3.90000 1.00000 600.0 57823.0
23 6350.0 21.0 2.90000 6.80000 ... 3.90000 1.00000 600.0 57823.0
24 6349.0 22.0 2.90000 6.80000 ... 3.90000 1.00000 600.0 57823.0
25 6348.0 23.0 2.90000 6.80000 ... 3.90000 1.00000 600.0 57823.0
26 6346.6 24.4 2.90000 6.80000 ... 3.90000 1.00000 600.0 57823.0
27 6346.6 24.4 3.38075 8.02206 ... 4.61180 0.90039 600.0 57823.0
28 6346.0 25.0 3.38068 8.02138 ... 4.61126 0.90062 600.0 57823.0
29 6345.0 26.0 3.38057 8.02024 ... 4.61037 0.90101 600.0 57823.0
.. ... ... ... ... ... ... ... ... ...
169 2500.0 3871.0 11.19067 9.38422 ... 0.00000 1.00000 0.0 57823.0
170 2400.0 3971.0 11.29298 9.48413 ... 0.00000 1.00000 0.0 57823.0
171 2300.0 4071.0 11.39042 9.57885 ... 0.00000 1.00000 0.0 57823.0
172 2221.5 4149.5 11.46358 9.64977 ... 0.00000 1.00000 0.0 57823.0
173 2200.0 4171.0 11.48311 9.66869 ... 0.00000 1.00000 0.0 57823.0
174 2100.0 4271.0 11.57119 9.75397 ... 0.00000 1.00000 0.0 57823.0
175 2000.0 4371.0 11.65478 9.83500 ... 0.00000 1.00000 0.0 57823.0
176 1900.0 4471.0 11.73401 9.91210 ... 0.00000 1.00000 0.0 57823.0
177 1800.0 4571.0 11.80900 9.98558 ... 0.00000 1.00000 0.0 57823.0
178 1700.0 4671.0 11.87989 10.05576 ... 0.00000 1.00000 0.0 57823.0
179 1600.0 4771.0 11.94681 10.12295 ... 0.00000 1.00000 0.0 57823.0
180 1500.0 4871.0 12.00988 10.18747 ... 0.00000 1.00000 0.0 57823.0
181 1400.0 4971.0 12.06923 10.24963 ... 0.00000 1.00000 0.0 57823.0
182 1300.0 5071.0 12.12499 10.30975 ... 0.00000 1.00000 0.0 57823.0
183 1221.5 5149.5 12.16633 10.35572 ... 0.00000 1.00000 0.0 57823.0
184 1221.5 5149.5 12.76361 11.02826 ... 3.50431 1.00000 84.6 1327.7
185 1217.1 5153.9 12.76595 11.02994 ... 3.50549 1.00000 84.6 1327.7
186 1200.0 5171.0 12.77495 11.03642 ... 3.51002 1.00000 84.6 1327.7
187 1100.0 5271.0 12.82503 11.07249 ... 3.53522 1.00000 84.6 1327.7
188 1000.0 5371.0 12.87076 11.10541 ... 3.55823 1.00000 84.6 1327.7
189 900.0 5471.0 12.91213 11.13520 ... 3.57905 1.00000 84.6 1327.7
190 800.0 5571.0 12.94914 11.16186 ... 3.59767 1.00000 84.6 1327.7
191 700.0 5671.0 12.98181 11.18537 ... 3.61411 1.00000 84.6 1327.7
192 600.0 5771.0 13.01011 11.20576 ... 3.62835 1.00000 84.6 1327.7
193 500.0 5871.0 13.03406 11.22300 ... 3.64041 1.00000 84.6 1327.7
194 400.0 5971.0 13.05366 11.23711 ... 3.65027 1.00000 84.6 1327.7
195 300.0 6071.0 13.06890 11.24809 ... 3.65794 1.00000 84.6 1327.7
196 200.0 6171.0 13.07979 11.25593 ... 3.66342 1.00000 84.6 1327.7
197 100.0 6271.0 13.08632 11.26063 ... 3.66670 1.00000 84.6 1327.7
198 0.0 6371.0 13.08850 11.26220 ... 3.66780 1.00000 84.6 1327.7
[199 rows x 10 columns]
import rockhound as rh
import matplotlib.pyplot as plt
# Load PREM into a DataFrame
prem = rh.fetch_prem()
print(prem)

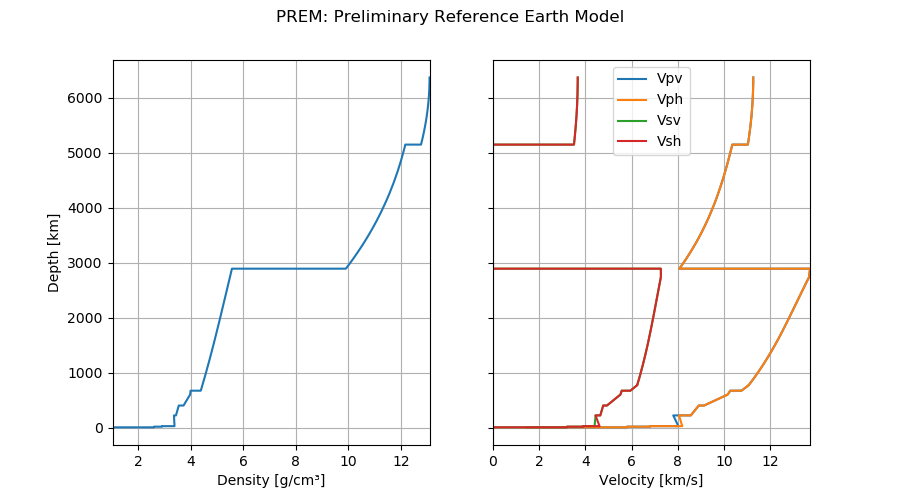

# Plot density and velocities
fig, axes = plt.subplots(1, 2, figsize=(9, 5), sharey=True)
fig.suptitle("PREM: Preliminary Reference Earth Model")
ax = axes[0]
prem.plot("density", "depth", legend=False, ax=ax)
ax.invert_yaxis()
ax.set_xlabel("Density [g/cm³]")
ax.set_ylabel("Depth [km]")
ax.grid()
ax = axes[1]
for velocity in ["Vpv", "Vph", "Vsv", "Vsh"]:
prem.plot(velocity, "depth", legend=False, ax=ax, label=velocity)
ax.grid()
ax.legend()
ax.set_xlabel("Velocity [km/s]")
plt.show()
Total running time of the script: ( 0 minutes 0.357 seconds)
